Electric motors are becoming a greater and more essential component of the automobile propulsion scene with each passing year. The most apparent application, as in hybrid and electric cars, is providing direct torque to spin the drive wheels. However, motors are popping up everywhere, such as oil and coolant pumps and, more recently, turbochargers. Garrett Motion is planning the first commercial deployment of an electric turbocharger in 2021. Garrett was split out from Honeywell in late 2018, recovering a piece of its former identity until 2004 when it was acquired by the same business. Power is generated by an internal combustion engine by igniting an air-fuel combination in the cylinders. The more fuel and air burned, the more power can be generated. The partial vacuum generated in the cylinder by the piston going downward pulls air through the open vents of a single cylinder. A supercharger is a mechanically driven pump that pushes additional air into the cylinder of an engine. Traditionally, they are powered by a belt that runs off the crankshaft. They give good responsiveness because to the evident direct drive, but burn a lot of power when operated at higher speeds.
Two distinct types of electric accelerating systems for engines have emerged in recent years. The first kind is an e-booster, which is already in use by Volkswagen Group and Mercedes-Benz. This is essentially the turbo’s compressor side coupled with an electric motor. Because the size of the compressor is intrinsically limited by the size of the motor necessary to spin it at such high speeds, e-boosters are used in tandem with exhaust-driven turbos. The e-booster gives the engine a quick low-end response, and as pressure builds, the bigger turbo takes over to produce ideal boost.

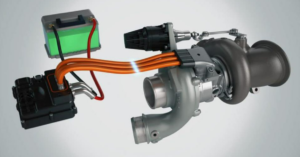

The e-turbo concept developed by Garrett and its competitors combines an electric motor and a turbocharger into a single unit. At low speeds, the motor can quickly spin up the turbo and build boost, resulting in excellent low-speed torque and driving dynamics. As the exhaust pressure rises, it assumes control of the e-turbo. Engineers can utilise a bigger compressor and turbine to generate more boost, allowing them to use a smaller engine displacement. Normally, the bigger wheels on the turbo would create additional reaction latency, but the electric motor solves that problem.
Another advantage of the e-turbo configuration. When the driver lets go of the accelerator, the exhaust gases and tyre inertia keep the turbo spinning for a brief time. At this moment, the motor converts into a generator that may charge the battery. The e-turbo, when used in tandem with a 48V electrical system, aids in the recovery of energy that would otherwise be lost through the exhaust pipe. When the next acceleration is required, this energy is utilised to spin up the e-turbo. The e-turbo is less difficult to pack than the e-booster and conventional turbocharger combination.
A typical turbocharger with a smaller turbine for rapid reaction becomes hotter at high speeds. The e-turbo may be built with a bigger turbine to keep it cool while retaining responsiveness and the optimal air-fuel ratio for lower total emissions. Garrett has not yet announced which manufacturer or engine type will use its e-turbo in 2021. So far, no other turbocharger manufacturers have announced particular production launches, but it wouldn’t be remarkable if one or more arrive in a time frame similar to or soon after Garrett’s launch programme.
